Die cast aluminum COB Design led street light housing manufacture 60w 140w led city road lighting, die casting led aluminum light kits.
Model No： EK-LD02A
Match Power： 60W/140W
Contain Accessories： Aluminum Housing, Heatsink body,Lens, Waterproof Rubber Ring，Supports, 304 s/s screws,,
Item : COB Street Light Housing
Power : 60W / 140W
Input Voltage : AC220 - 240V, 50/60 HZ
Choisissez la couleur : gris foncé, gris clair, noir, personnalisé, etc.
Lifespan : ≥50000 Hours
caractéristiques du produit
Die casting Aluminum material body with high quality surface treatment powder painting black color ,gray color or customized as clients Requirements
- COB Design with different power from 40w--140w , high performance on Lighting efficiency, Match your project Main Road and small city street side,
- High waterproof protect IP65 IP66, suit to projects and install near sea city or road lighting, IK08/IK09 shock proof grade ,great quality surface powder dusting to guarantee long lifetime of the lighting use,
- Good dissipation line design to help the working lighting Efficient heat dissipation Cooling, During the same size empty housing do bigger power lighting to Saving your cost and Maintenance fee.
Toute la série et les spécifications
| Code modèle | Taille du boîtier (Mm) | Puissance de correspondance | Lampadaire (Mm) | Poids (kg) | Accessoires |
| EK-LD02A-S | 717*245*138 | 60W-80W | 60 | 4.9 | Heatsink body,Lens, Waterproof Rubber Ring，Supports, 304 s/s screws, |
| EK-LD02A-M | 783*245*138 | 100W-140W | 60 | 6.3 | |
| Legend: Std = IP65 IK08 Testing certificates | |||||
| Housing Material ：Die-cast Aluminum + Acrylic Lens | |||||
| Température de travail -35℃~50℃ 20%~90% HR | |||||

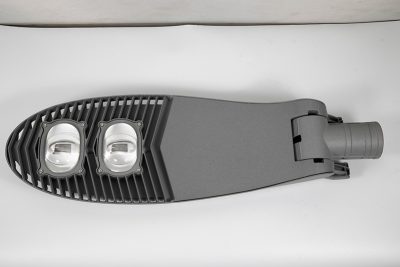

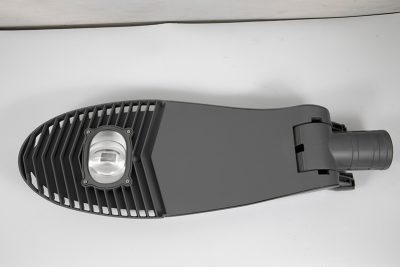

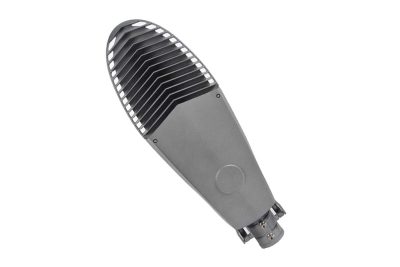

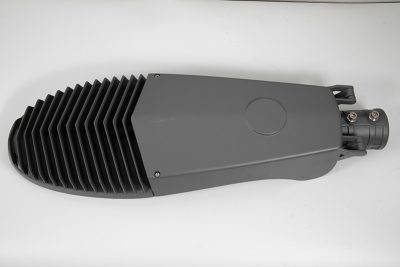

LED COB Street Light Housing
EK-LD02A
IP65/IP66 , IK08/IK09
Matériau : Aluminium ADC12
Couleur du boîtier : gris, noir,
